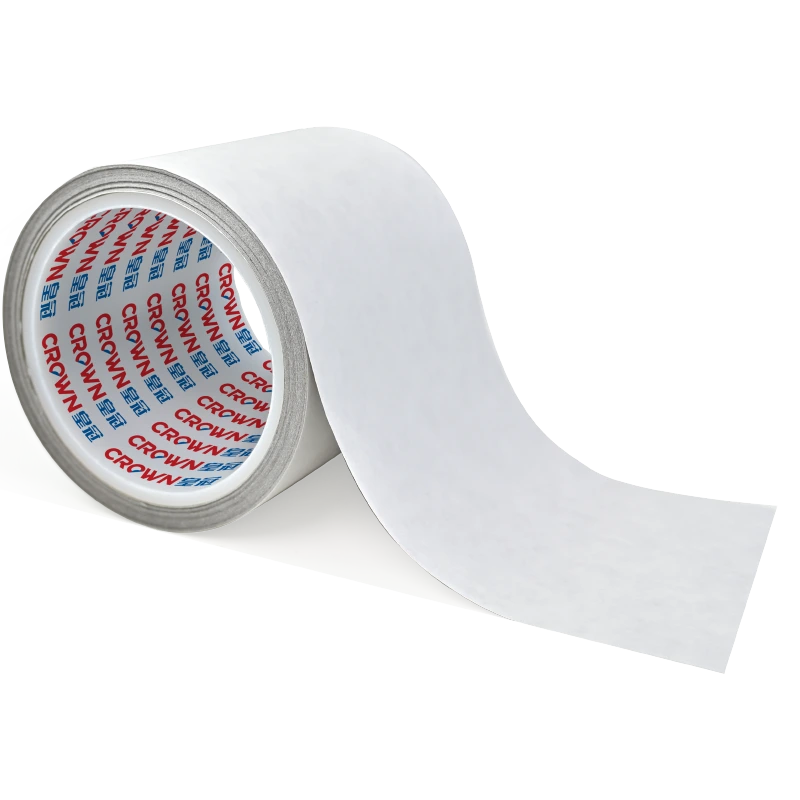

Conductive Adhesive Film
Conductive tape forms an electrical pathway through conductive fillers embedded within the adhesive, allowing current to pass between materials. It not only enables conductivity but also dissipates static electricity and provides grounding, helping to protect electronic components from damage caused by static buildup. Conductive tape plays a critical role in circuit connections, shielding against electromagnetic interference (EMI), and safeguarding sensitive devices.
Features
● High conductivity
● Excellent gap-filling capability
● Superior bonding strength
● Available in various thicknesses
● High conductivity
● Excellent gap-filling capability
● Superior bonding strength
● Available in various thicknesses
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Applications
aluminum foil
copper foil
Product Series
| Model | Single/Double Sided | Thickness (mm) |
180 ° peel force (N/25mm) |
X-Y horizontal resistance (Ω/□) |
Vertical resistance in Z direction (Ω/inch^2) |
Room temperature retention (Min) |
| ED01009H | Two-sided | 0.01 | ≥7 | ＜0.1 | ＜0.03 | ＞1440 |
| ED02007H | Two-sided | 0.02 | ≥12 | ＜0.1 | ＜0.03 | ＞1440 |
| ED03001H | Two-sided | 0.03 | ≥12 | ＜0.1 | ＜0.03 | ＞1440 |
| ED04005H | Two-sided | 0.04 | ≥12 | ＜0.1 | ＜0.03 | ＞1440 |
| ED05002H | Two-sided | 0.05 | ≥15 | ＜0.1 | ＜0.03 | ＞1440 |
| ED10035H | Two-sided | 0.1 | ≥19 | ＜0.1 | ＜0.03 | ＞1440 |
