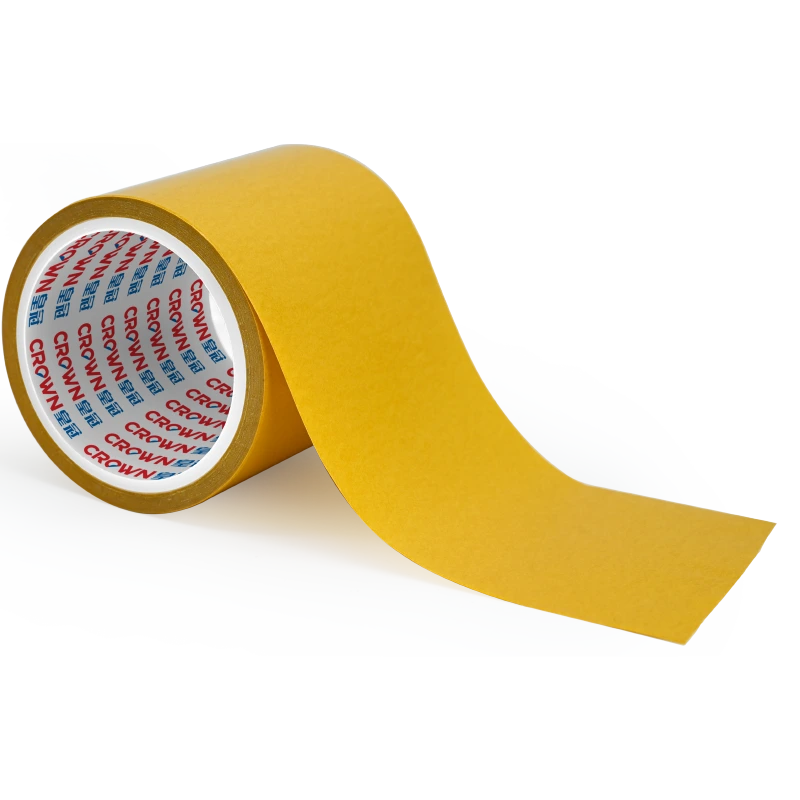

General purpose PET tape

This product is an industrial-grade double-sided adhesive tape, using PET or PVC film as the base material, coated on both sides with acrylic-based polymer adhesive, and laminated with release paper or release film. Available in a wide range of thicknesses from 30μm to 325μm, it offers excellent bonding performance, dimensional stability, and die-cutting adaptability.

Features
● Flexible backing material provides strong adhesion to curved and rough surfaces
● Excellent resistance to temperature and humidity, suitable for demanding environments
● Customizable release liners are available upon request, including brown glassine paper, white glassine paper, and release films

Inquiry

Write a Review

Applications

Fixation of screen buffer pads

Attachment of smartphone frame structures

Adhesive bonding and positioning of camera lens modules

Mounting of LED light strips

Product Series

Series	Model	Thickness (μm)	Color	Initial adhesion (mm)	Adhesion (N/24mm)	Holding power (hour)	Temperature resistance (℃)
79 (G) Series	7983(G)	30±5	Transparent	≤150	≥7	≥24	120
79 (G) Series	7972(G)	50±5	Transparent	≤150	≥8	≥24	120
79 (G) Series	7980(G)	80±5	Transparent	≤120	≥10	≥24	120
79 (G) Series	7982(G)	100±5	Transparent	≤100	≥12	≥24	120
79 (G) Series	7928(G)	125±5	Transparent	≤100	≥14	≥24	120
79 (G) Series	7929(G)	140±5	Transparent	≤100	≥15	≥24	120
79 (G) Series	7967(G)	160±5	Transparent	≤100	≥15	≥24	120
79 (G) Series	7965(G)	205±5	Transparent	≤100	≥17	≥24	120
79 (G) Series	7926(G)	245±5	Transparent	≤100	≥18	≥24	120
79 Red Film Series	7980M	80±5	Transparent	≤120	≥10	=24	120
79 Red Film Series	7982M	100±5	Transparent	≤100	≥12	≥24	120
79 Red Film Series	7967M	160±5	Transparent	≤100	≥15	≥24	120
79 Red Film Series	7965M	205±5	Transparent	≤100	≥17	≥24	120
79 Red Film Series	7965/A	205±5	Transparent	≤100	≥18	≥24	60
69L series	6972L	50±5	Transparent	≤180	≥9	≥24	80
69L series	6980L	80±5	Transparent	≤180	≥11	≥24	80
69L series	6972LE	50±5	Transparent	≥180	≥8	≥24	80
78 BT (G)/79 TB (G) Series	7880BT(G)	80±5	Black	≤120	≥9	≥24	120
78 BT (G)/79 TB (G) Series	7882BT(G)	100±5	Black	≤100	≥11	≥24	120
78 BT (G)/79 TB (G) Series	7828BT(G)	125±5	Black	≤100	≥13	=24	120
78 BT (G)/79 TB (G) Series	7829BT(G)	140±5	Black	≤100	≥14	≥24	120
78 BT (G)/79 TB (G) Series	7867BT(G)	160±5	Black	≤100	=14	≥24	120
78 BT (G)/79 TB (G) Series	7865BT(G)	205±5	Black	≤100	≥16	≥24	120
78 BT (G)/79 TB (G) Series	7983TB(G)	30±5	Black	≤150	≥6	≥24	120
78 BT (G)/79 TB (G) Series	7972TB(G)	50±5	Black	≤150	≥7	≥24	120
