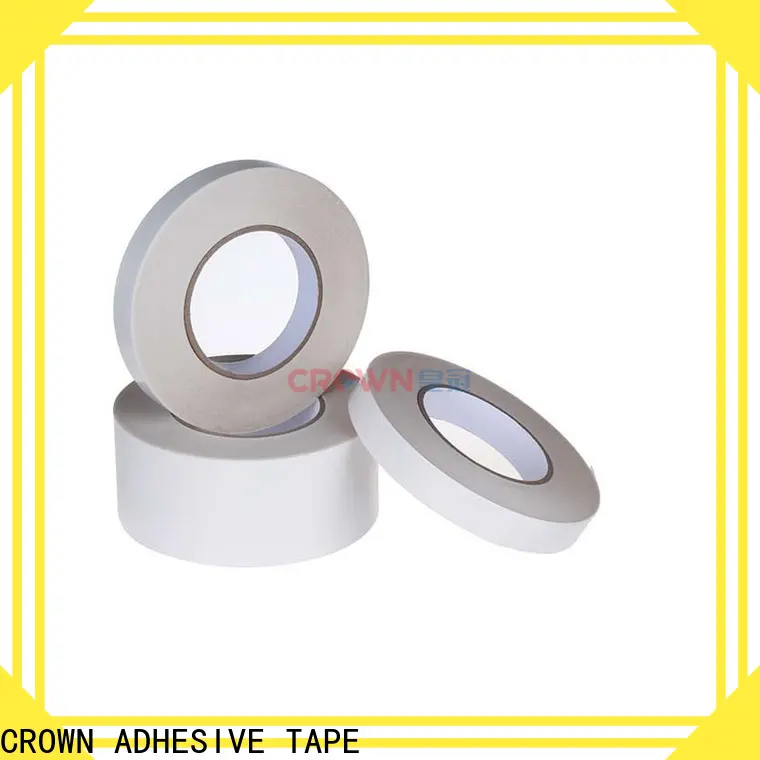

◔ This product serie is directly coated with acrylic adhesive on the release liner without any carrier. The tape is transparent in color, has excellent bonding effect, preventing residues, oozing and other defects. It is good for punching and die cutting applications; widely used in general industrial assembly, bonding of membrane switch, nameplates and electronic parts.
◔Anti-rebound, resistance to warping, heat resistance and temperature resistance
◔ Highly transparent
◔ Strong adhesion and holding power
◔ Good bonding effect to multiple kinds of carrier materials
FPC bonding and fixation
Suggested Model: NC767
This model is 50 ~ 55μm thick, dry texture, good for punching and die cutting application; stable bonding effect to all kinds of carrier materials; good bonding to FPC.
Membrane switch bonding
Suggested Model: NC768
Relatively dry texture, good for punching and die cutting application; stable bonding effect to all kinds of carrier materials, such as membrane, plastics or metal.
Metal sheet temporary bonding and fixation
Suggested Model: NC768A
This model is 128 ~132μm thick and relatively soft, strong bonding effect, especially suitable for the bonding of foam materials.
Model | Tape thickness(mic) | Color | Initial Tack(mm) | Peeling Force(N/24mm) | Holding Power(hour) | Temp. Resistance(℃) | Remarks | |||||
| NC767 | 50-55 | Transparent | >=50 | >=10 | >=24 | 80 | White release liner, relatively hard texture, suitable for die-cutting and punching. | |||||
| NC767N | 50-55 | Transparent | <=100 | >=10 | >=24 | 80 | Yellow kraft paper, good initial tack, suitable for the bonding of all kinds of plastic and metal panels. | |||||
| NC768 | 128-132 | Transparent | <=150 | >=13 | >=24 | 80 | White release liner, relatively dry, good film-forming property, suitable for die-cutting and punching. | |||||
| NC768N | 128-132 | Transparent | <=100 | >=13 | >=24 | 80 | Yellow kraft paper, good initial tack, suitable for the bonding of all kinds of plastic and metal panels. | |||||
| NC767G | 50-55 | Transparent | <=100 | >=11 | >=24 | 80 | White release liner, suitable for the bonding of all kinds of plastic and foam materials. | |||||
| NC767A | 50-55 | Transparent | <=100 | >=11 | >=24 | 80 | White release liner, strong adhesion, suitable for the bonding of all kinds of plastic and foam materials. | |||||
| NC768A | 128-132 | Transparent | <=150 | >=14 | >=24 | 80 | White release liner, strong adhesion, suitable for the bonding of all kinds of plastic and foam materials. | |||||
| NC767G-1 | 50-55 | Transparent | <=100 | >=9 | >=24 | 80 | White release liner, relatively hard texture, suitable for die-cutting and punching. | |||||
Disclaimer: The product technical data are for reference only. Actual performance may differ depending on factors beyond our expectation and control. | ||||||||||||
