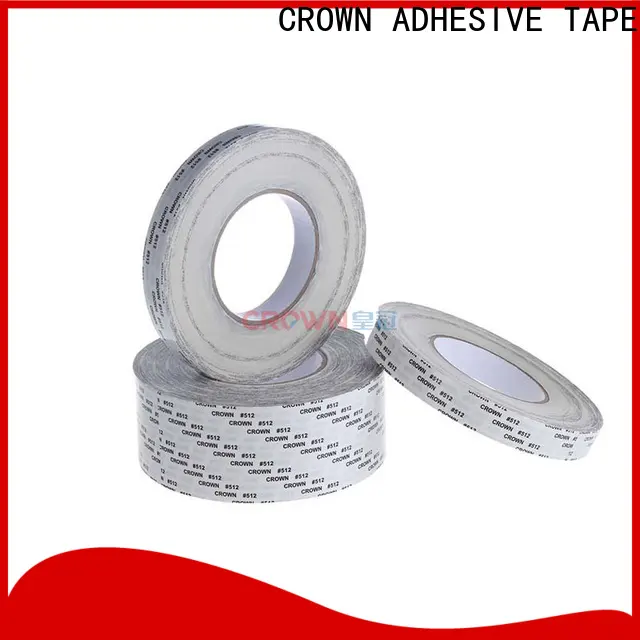

◔ This product serie uses tissue as the carrier and acrylic adhesive is evenly coated on both sides, and then laminated with release liner.
◔ It is used in industrial purpose and is widely used in household appliances, automobiles, leather, printing and packaging and other manufacturing industries.
◔ Anti-rebound, warping resistant, heat resistance and temperature tolerance[resistance].
◔ Strong adhesion and holding power.
Evaporator Aluminium Pipe fixation
Suggested Model: DS512Z
Strong adhesion and holding power; strong adhesion to multiple kinds of materials; suitable for the bonding of labels.
Speaker grille fixation
Suggested Model: DS15BH/140mic
Black double-sided tape with tissue paper carrier; Strong adhesion and holding power; good thermal endurance.Suitable for the bonding of TV speaker grille, microphone, speaker, earplugs, microphone, etc.
Interior Ceiling Lint Fixation
Suggested Model: DS606/160mic
Strong adhesion, both open side and close side are suitable for bonding a variety of foam materials; low odor foam bonding in cars.
MYLAR fixation
Suggested Model: DS742
Tape thickness: 0.05 mm only. Strong adhesion and holding power; suitable for the fixation and bonding in punching application, name plates, membrane switch, aluminium foil and laptop computer components (circuit aluminium foil).
Elevator steel plate bonding
Suggested Model: DS613/DS512
Strong adhesion and holding power; Strong adhesion to different kinds of materials; suitable for the bonding of punching parts, nameplates and membrane switch; Widely used in the elevator industry.
Paperbox Sealing
Suggested Model: DS513/DS701
Strong adhesion,heat resistant, suitable for the bonding of different types of paper boxes.
| Model | Tape thickness (mic) | Color | Initial Tack (mm) | Peeling Force (N/24mm) | Holding Power (hour) | Temp. Resistance (℃) | Remarks | |||||
7 Serie | ||||||||||||
| DS712M | 150+/-5 | Translucent | <=100 | >=20 | >=24 | 100 | Thin, strong adhesion and holding power, mostly used for the exterior/rearview mirror | |||||
| DS742 | 50-60 | Translucent | <=100 | >=9 | >=24 | 80 | Good bonding strength, good holding power, certain temperature resistance and strong weather resistance | |||||
| DS713PN | 160+/-5 | Translucent | <=100 | Outside>=15 Inside>=17 | >=24 | 80 | Good bonding effect, suitable for bonding on low plastic curved surfaces, such as bonding of labels on the rice cooker, etc. | |||||
6 Serie | ||||||||||||
| DS611 | 120+/-5 | Translucent | <=100 | >=12 | >=24 | 120 | Good adhesion to multiple kinds of materials, including LSE. | |||||
| DS612 | 140+/-5 | Translucent | <=100 | >=14 | >=24 | 120 | ||||||
| DS612A | 140+/-5 | Translucent | <=100 | Inside>=14 Outside>=16 | >=24 | 80 | Insided bonding of steel plates, housing or ABS plates; dedicated for double-sided foam bonding. | |||||
| DS613 | 160+/-5 | Translucent | <=100 | >=15 | >=24 | 120 | Good adhesion to multiple kinds of materials, including LSE. | |||||
| DS613PN | 160+/-5 | Translucent | <=100 | Inside>=16 Outside>=14 | >=24 | 120 | Good adhesion to multiple kinds of materials, including LSE. particularly strong surface closing performance. | |||||
| DS645 | 110+/-5 | Translucent | <=100 | >=12 | >=24 | 80 | Strong adhesion and holding power, mostly used in the electronic die cutting industry. | |||||
| DS648 | 160+/-5 | Translucent | <=100 | >=16 | >=24 | 80 | Strong adhesion and holding power, mostly used in the electronic die cutting industry. | |||||
| DS6200 | 200+/-5 | Translucent | <=100 | >=15 | >=24 | 120 | Strong adhesion; suitable for the bonding of membrane switch, signs and plastic components. | |||||
| DS6300 | 300+/-5 | Translucent | <=100 | >=16 | >=24 | 120 | Thickness: 0.3 mm, excellent filler effect for the target material for bonding. | |||||
| DS6400 | 400+/-5 | Translucent | <=100 | >=17 | >=24 | 120 | Thickness: 0.4 mm, excellent filler effect for the target material for bonding. | |||||
5 Serie | ||||||||||||
| DS510 | 100+/-5 | Translucent | <=100 | >=11 | >=24 | 80 | Strong adhesion and holding power; Suitable for the bonding of punching application, nameplates and membrane switch. | |||||
| DS511 | 120+/-5 | Translucent | <=100 | >=13 | >=24 | 80 | ||||||
| DS512 | 140+/-5 | Translucent | <=100 | >=15 | >=24 | 80 | ||||||
| DS513 | 160+/-5 | Translucent | <=100 | >=16 | >=24 | 80 | ||||||
| 5G Serie | ||||||||||||
| DS511G | 120+/-5 | Translucent | <=100 | >=15 | >=24 | 60 | Stronger adhesion than 5 series; suitable for use on multiple kinds of materials. | |||||
| DS512G | 140+/-5 | Translucent | <=100 | >=17 | >=24 | 60 | ||||||
| DS513G | 160+/-5 | Translucent | <=100 | >=18 | >=24 | 60 | ||||||
3 Serie | ||||||||||||
| DS310 | 100+/-5 | Translucent | <=100 | >=11 | >=24 | 60 | Strong adhesion to multiple kinds of materials. | |||||
| DS311 | 115+/-5 | Translucent | <=100 | >=13 | >=24 | 60 | ||||||
| DS312 | 135+/-5 | Translucent | <=100 | >=14 | >=24 | 60 | ||||||
| DS313 | 155+/-5 | Translucent | <=100 | >=15 | >=24 | 60 | ||||||
Black Tissue Serie | ||||||||||||
| DS15BH | 100+/-5 | Translucent | <=100 | >=11 | >=24 | 120 | Strong adhesion and holding power; Suitable for the bonding of kinescope, speaker grille, speakers and others. | |||||
| DS15BH | 120+/-5 | Translucent | <=100 | >=13 | >=24 | 120 | ||||||
| DS15BH | 140+/-5 | Translucent | <=100 | >=14 | >=24 | 120 | ||||||
| DS15BH | 160+/-5 | Translucent | <=100 | >=15 | >=24 | 120 | ||||||
60 Serie | ||||||||||||
| DS601 | 130+/-5 | Translucent | <=100 | >=13 | >=10 | - | Ultra strong adhesion, suitable for the bonding of all kinds of foam materials related to automobiles. | |||||
| DS601 | 160+/-5 | Translucent | <=100 | >=16 | >=10 | - | ||||||
| DS606 | 130+/-5 | Translucent | <=100 | >=13 | >=10 | - | Low VOC tape, very strong adhesion, suitable for the bonding of all kinds of foam materials related to automobiles. | |||||
| DS606 | 160+/-5 | Translucent | <=100 | >=16 | >=10 | - | ||||||
Disclaimer: The product technical data are for reference only. Actual performance may differ depending on factors beyond our expectation and control. | ||||||||||||
